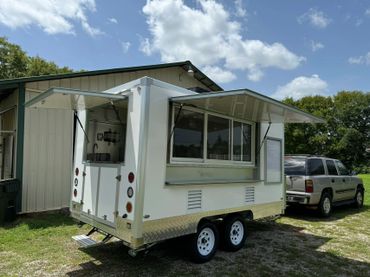

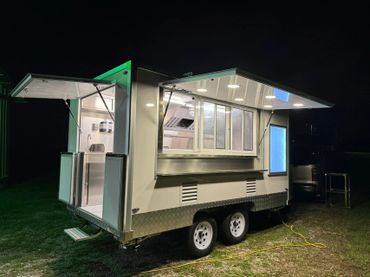

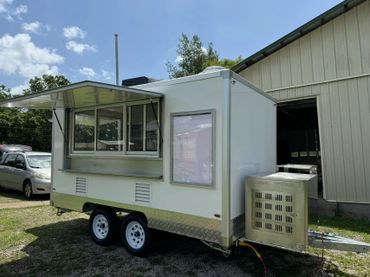

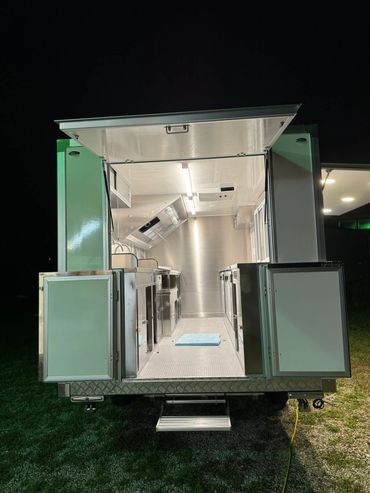

Rectangle Model B-14 / B-16 / B-18 / B-20 / B-22 / B-24

Material: Re-enforced Fiberglass with XPS Insulation

Cart size B-14 (not include the towing tongue): L 9'2" x W 7'3" x H 8'2" (single axle)

Cart size B-16  (not include the towing tongue): L 10'9" x W 7'3" x H 8'2" (single axle)

Cart size B-18  (not include the towing tongue): L 12'10" x W 7'3" x H 8'2" (double axle)

Cart size B-20  (not include the towing tongue): L 14'9" x W 7'3" x H 8'2" (double axle)

Cart size B-22  (not include the towing tongue): L 16'5" x W 7'3" x H 8'2" (double axle)

Cart size B-24  (not include the towing tongue): L 19' x W 7'3" x H 8'2" (double axle)

• 205/75R15 wheel & tire
• Electrical brake on one axle
• Real deep galvanized tow frame & chassis
• 3500lbs / 5000lbs galvanized coupling for 2" ball
• 4 heavy duty standing legs
• Swing up jockey wheel
• Door step
• Build-in outside serving board

• 125A UL certified electric package (6x 110V15A outlet + LED Light)
• 1x 220V30A outlet
• Aluminum checker plate floor

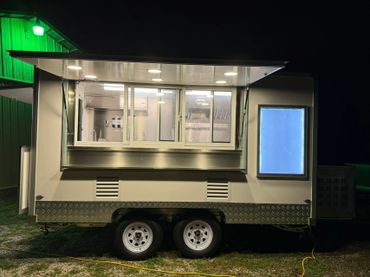

• 1x open-able serving window with sliding windows & screen
• Build-in fresh water tank 30 gallons underneath
• Build-in grey water tank 38 gallons underneath

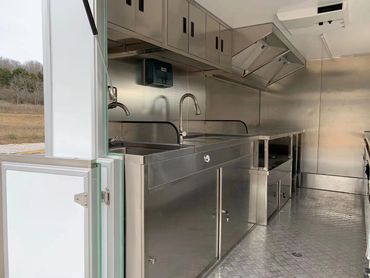

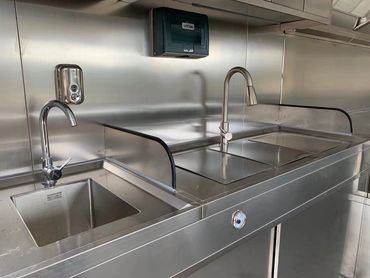

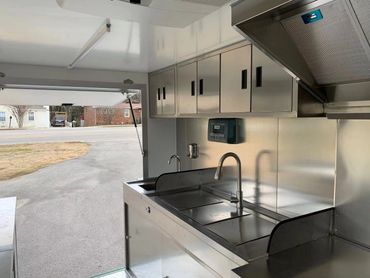

• US standard 3-compartment sink with drain boards
• Hand sink with splash-guard
• Electric Water heater 1.5 gallons
• Water pump
• Top-Mounted AC

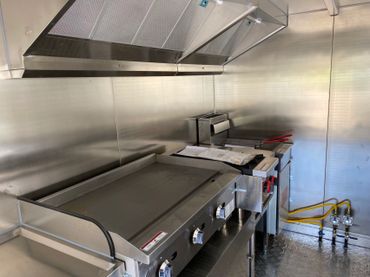

• Commercial exhaust hood with type 1 roofing exhaust fan
• Additional insulation under the hood
• Cash drawer
• Wall-mounted cabinet
• Stainless Steel working counter, cabinets and shelves

• Exterior color available: Black, White, Yellow, Red, Blue
• Floor-plan design support

• Stainless steel under counter freezer 59" / 9.7 cu ft
• Stainless steel under counter refrigerator 59"/  9.7 cu ft
• Window on other side
• Stainless steel box for Electric generator
• Stainless steel cage for Gas tank
• Additional 220V30A outlet
• Signing and wrapping from
• External LED strips
